Innovative digital x-ray system for Casting NDT inspection
360° inspection

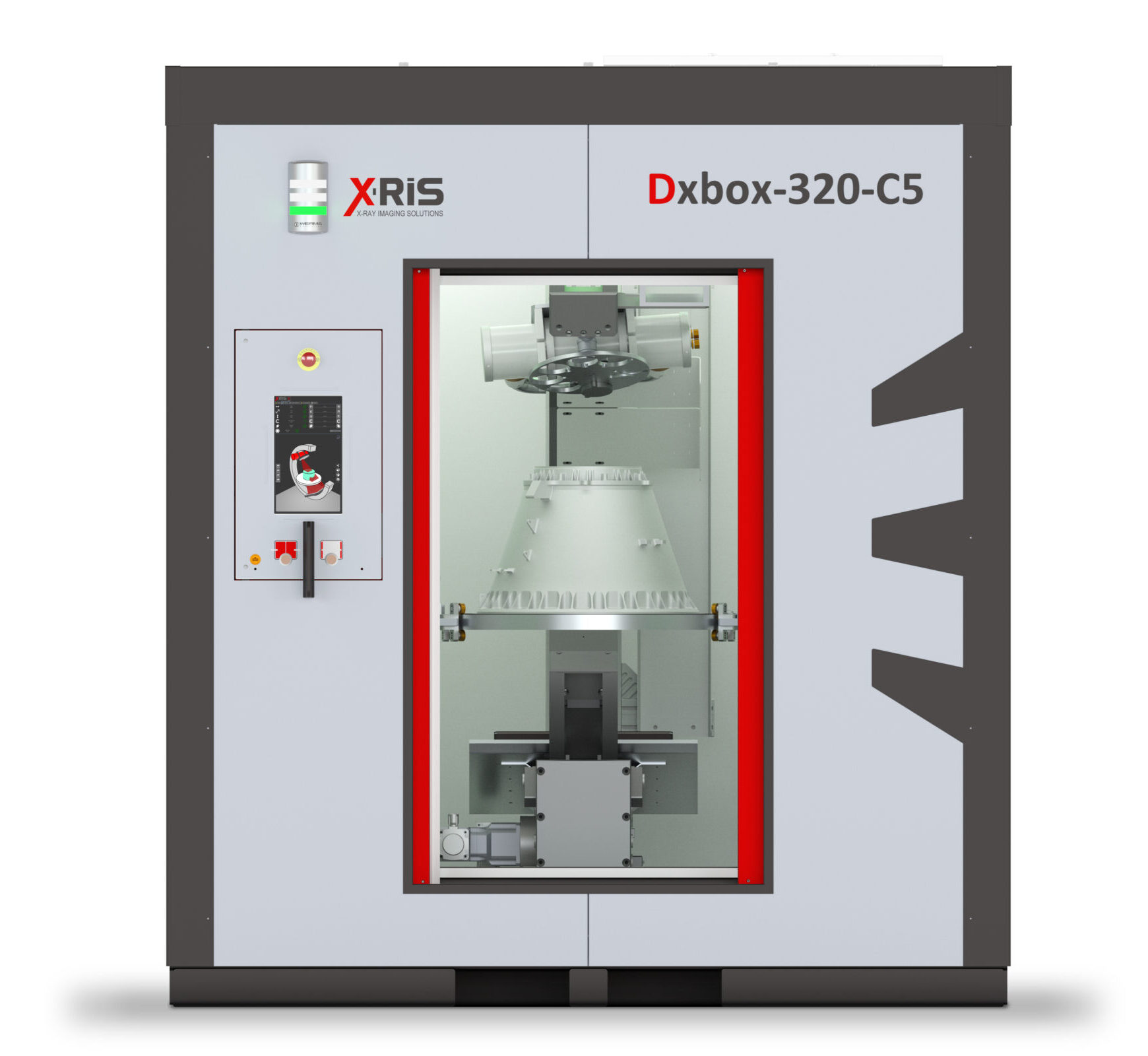

The Dxbox-C5 is an innovative system with a radio-transparent turntable enabling X-ray inspection of parts from any direction, including through the turntable. Operator intervention during the X-ray sequence is no more needed.
Unique

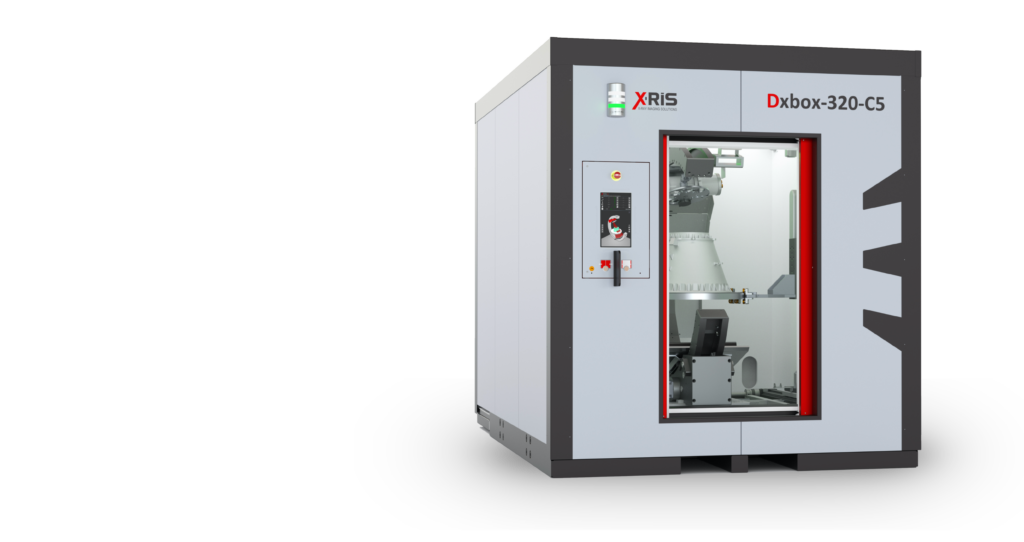

Dxbox-C5 is one-of-a-kind worldwide and is especially crucial for applications requiring complex parts to be X-rayed from multiple angles to meet all specified standards. Shippable anywhere, the 347 x 222 x 248 cm cabinet weighs between 14 and 20 tons.
X-ray system digital imaging
Tube | Up to 450 kV |
Detector (active area) | Up to 43 x 43 cm |
System dimensions | 347 x 222 x 248 cm |
System weight | 14 - 20 tons |
Manupulation | 5 axes |
Part dimensions | |
Part max. weight | 50 kg |
